GYXTW Outdoor Fiber Optic Cable FTTH Tube Filling Light Armored Optical Fiber Cables

Brand Name : WRC

Model Number : GYXTW

Certification : ISO9001,SGS

Place of Origin : China

MOQ : 5.0km

Price : USD20-USD120/Km

Payment Terms : Western Union, MoneyGram, D/P, T/T, L/C

Supply Ability : 500Km per day

Delivery Time : 5-21 days

Packaging Details : Export Carton Packing

Application : Telecommunication,Telecom,Network

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Type : Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode

Fiber count : 2-24 core

Color : Black,Blue,Grey,Customized,Green

Jacket : PE,MDPE,LSZH,PVC

Product name : GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber

Length : 2km , or customized length

Jacket material : PE,LSZH,TPU,LSZH OR PVC

Installation : self- supporting Aerial,aerial,Aerial & Duct

Structure : Loose tube,Unitube

Operating temperature : -40~75

Sheath material : LSZH,HDPE,PVC

Strength member : steel wire

Contact Now

GYXTW fiber optic cable outdoor FTTH Tube Filling light-Armed optical fiber cables

Product Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated

steel tape and the loose tube water-blocking material is applied to keep the cable compact

and watertight. Two parallel steel wires are placed at the two sides of the steel tape.

The cable is completed with PE sheath.

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation

Model Number	GYXTW
Type	Coaxial
Number of Conductors	2
Certification	UL ,ROHS,SGS
Fiber	SM/MM/OM3/OM4
Fiber Core	2-24 core
Jacket Material	PE /LSZH/PU
Laying method	Pipeline/Overhead/Direct bury/Duct
keywords	outdoor fiber optic cable
Color	Black or customized
Fiber brand	Corning, LS, etc
Fire Resistant	Yes
Armored or not	Corrugated steel tape armored

Optical Characteristics:

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Standards:

GYXTW cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C

Technical Parameters

Cable

Type

Fiber

Count

Cable

Diameter(mm)

Cable Weight

kg/km

Tensile

Strength Long

/Short Term N

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYXTW-2~24

2~24

8.8

600/1500

300/1000

15D/30D

Cable marking of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber

(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;

(4) Factory name;

(5) Date of manufacturing (year);
(6) Other requirements ;

The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

FAQ

1. What are the payment terms that you support?

Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?

When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

4. How can I place an order?

(1) Negotiation is agreed upon for the product price and specifications.

(2) The Proforma invoice will be sent for confirmation.

(3) After the agreement on the proforma invoice, the customer makes the deposit.

(4) Manufacturing will be started as soon as the payment is confirmed by our bank.

(5) Ship out the goods within the agreed delivery deadline.

5. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. How about the Warranty?

There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

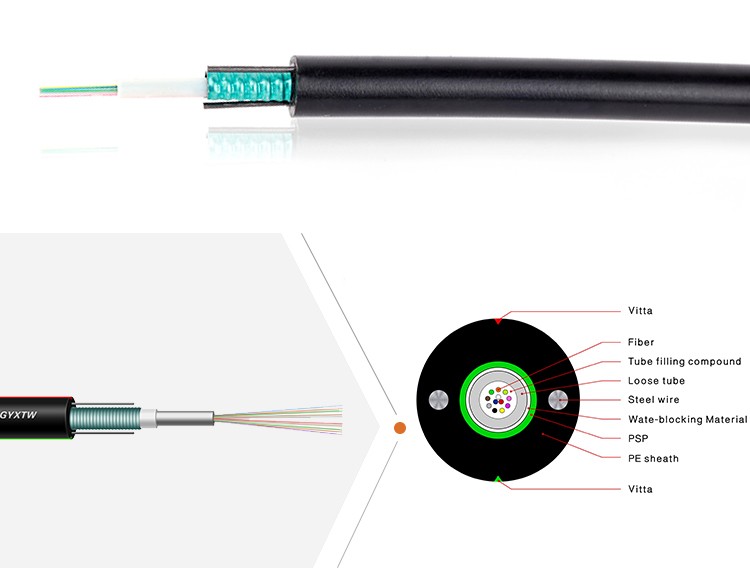

Drawings of GYXTW fiber cable outdoor Loose tube fiber optic cable gyxtw g652d fiber
